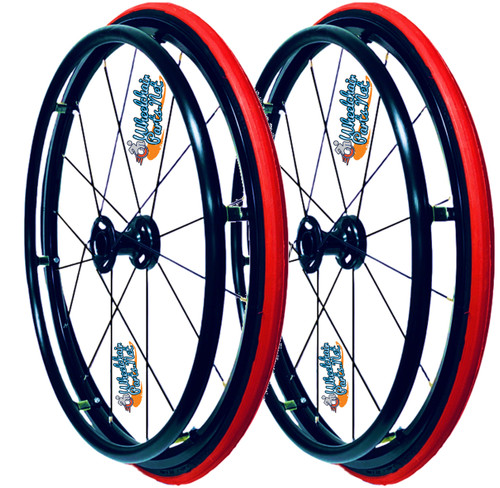

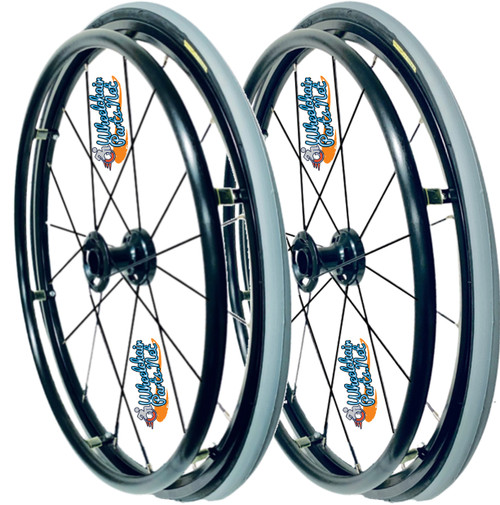

24" (540) Swan® 16 Spoke Wheelchair Wheel - Set of 2

24" (540) Swan® 16 Spoke Wheelchair Wheel - Set of 2

$275.00

SKU:: RWSWA24
Shipping:: Calculated at Checkout

Overview

Product Description

Swan 24 in. (540m) Swan® 16 Spoke Aluminum Wheelchair Wheel

Featuring a combination of 12 gauge straight pull (on the inside) and J-bend spokes (on the outside)
Lightweight double wall aluminum rim with 18 mm inner width
Aluminum hub with 1/2" inner diameter sealed precision bearings
1.875" bearing to bearing measurement
6 tab black anodized aluminum handrim
NO tire
Sold as pair

24 in. (540m) Swan® 16 Spoke Aluminum Wheelchair Wheel Benefits

This wheel features a combination of straight pull and J-bend spokes. The straight pull spokes on the inside of the hub increase side load integrity when cambering the wheel and the J-bend spokes on the outside of the hub are cross laced which helps increase wheel rotation integrity. It all adds up to a competent wheel assembly suitable for many types of activities. The spokes themselves are 12 gauge in size which adds strength and reduces the number of spokes required.

24 in. (540) Shox® Swan® 16 Spoke Aluminum Wheelchair Wheel Fitment Notes

This wheel assembly fits a variety of wheelchairs from Invacare (Top End), TiLite, Quickie, Ki-Mobility, Colours and mnay other brand of wheelchairs using 540 mm wheels with 1/2" inner diameter bearings. The width of the hub (measured from outside bearing to outside bearing) is 1.875". To verify if your existing axle will work, add the width of the axle carrier tube on the wheelchair plus any spacers that are being used to this hub (1.875") and compare the length to your existing axle. If you are using a quick release axle, the length is measured from the underside of the adjustment nut to the start of the retractable ball on the other end (most quick release axles are adjustable in length by up to a 1/4"). If your are using a conventional hex head axle, the measurement is from underside of the head to the end (remember you need additional length to accommodate the thickness of the nut).

Premium Tires

Choose from a variety of tire options to suite your taste, style, or intended use.

The Shox urethane tire is a solid flat free tire featuring a custom mix of elastomers allowing impacts to resonate throughout the tire, yielding superior shock absorption. The tread pattern is a full herringbone design. Available in black, blue, gray, and red. Sized 25-540 (24 x 1 in.).
The Aero-Flex™ Urethane Street tire is a solid flat free tire featuring a street design tread for good all around traction and every day use. Choose from light or dark gray color. Sized 37-540 (24 x 1 3/8")
The Primo V-Trak tire features a full herringbone tread, 110 PSI max air pressure, and is available with gray, blue and red (all colors have black sidewalls). A high pressure inner tube is required with air tires, sized 25-540 (24 x 1 in.)
The Schwalbe Rightrun tire features low rolling resistance, excellent handling, built in puncture resistance, and is available with gray, blue, or red stripes. A high pressure inner tube with Schrader valve is included. Sized 25-540 (24 x 1 in.)

24 in. (540) Swan® 16 Spoke Aluminum Wheelchair Wheel Specifications

Double wall rim made from high strength lightweight aluminum

Inner width of rim is 18 mm

8 12 gauge straight pull spokes on the inside of the hub

8 12 gauge cross laced spokes on the outside of the hub

High strength aluminum hub

1/2" inner diameter sealed precision bearings

Standard 6 tab push rim with two hole adjustment made from black anodized aluminum
