  • 24" (540) Swan® 16 Spoke Wheel & Pneumatic Touring Grey Tire - Set of 2
  • 24" (540) Swan® 16 Spoke Wheel & Pneumatic Touring Grey Tire - Set of 2
  • 24" (540) Swan® 16 Spoke Wheel & Pneumatic Touring Grey Tire - Set of 2

    • 24" (540) Swan® 16 Spoke Wheel & Pneumatic Touring Grey Tire - Set of 2

    $335.00
    SKU:
    RWSWA24-T44
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    Set of 24 in. (540m) Swan® 16 Spoke Aluminum Wheelchair Wheel With PNEUMATIC Touring Tires
    in 24" x 1 3/8 in Grey Color

    • Featuring a combination of 12 gauge straight pull (on the inside) and J-bend spokes (on the outside)
    • Lightweight double wall aluminum rim with 18 mm inner width

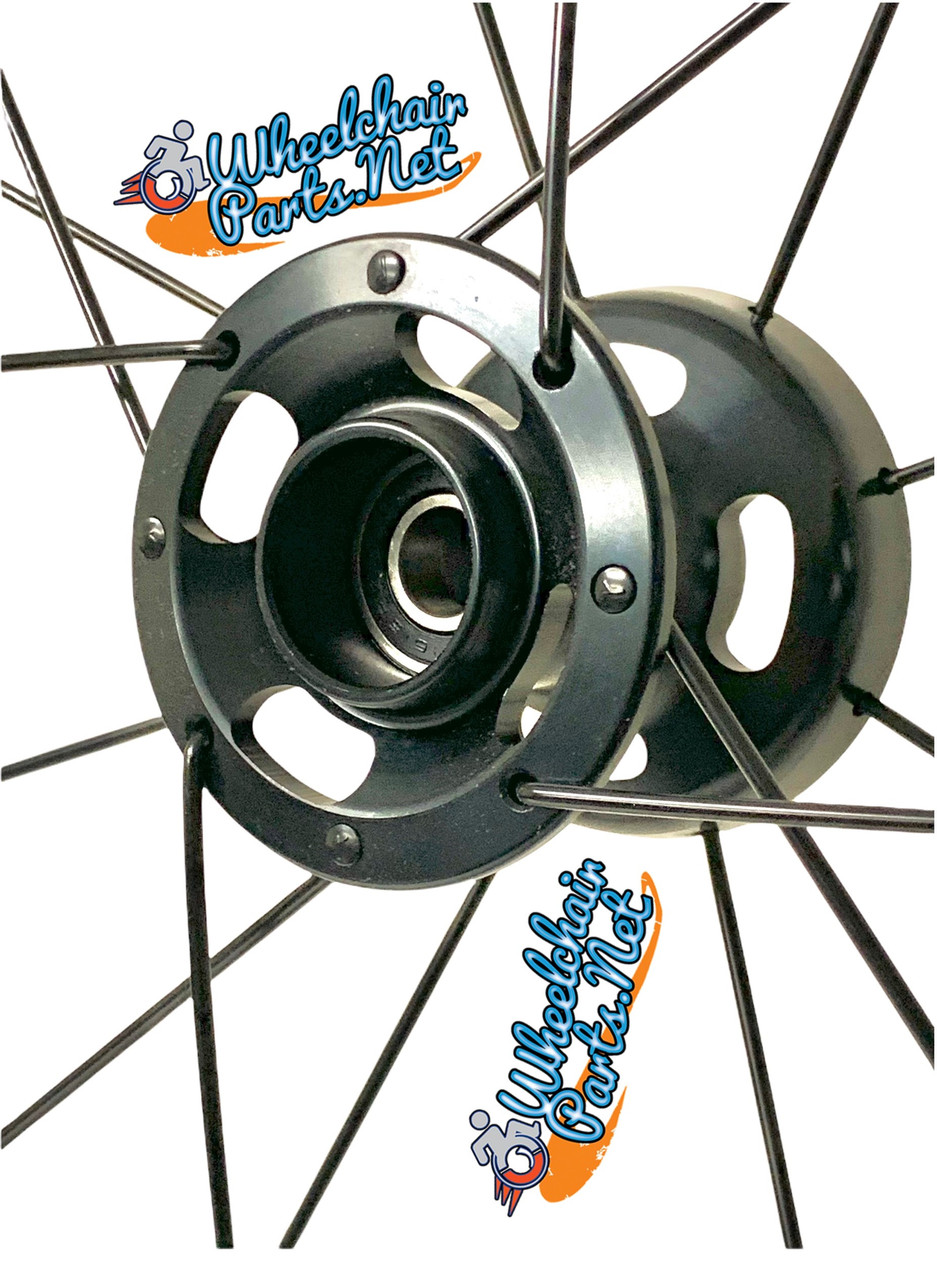

    • Aluminum hub with 1/2" inner diameter sealed precision bearings
    • 1.875" bearing to bearing measurement
    • 6 tab black anodized aluminum handrim
    • Tire: Touring 24"x1 3/8" in Grey Color
    • Sold as pair
    24 in. (540m) Swan® 16 Spoke Aluminum Wheelchair Wheel Benefits
    This wheel features a combination of straight pull and J-bend spokes. The straight pull spokes on the inside of the hub increase side load integrity when cambering the wheel and the J-bend spokes on the outside of the hub are cross laced which helps increase wheel rotation integrity. It all adds up to a competent wheel assembly suitable for many types of activities. The spokes  themselves are 12 gauge in size which adds strength and reduces the number of spokes required.

    24 in. (540) Swan® 16 Spoke Aluminum Wheelchair Wheel Compatibility
    This wheel assembly fits a variety of wheelchairs from Invacare (Top End), TiLite, Quickie, Ki-Mobility, Colours and many other brand of wheelchairs using 540 mm wheels with 1/2" inner diameter bearings. The width of the hub (measured from outside bearing to outside bearing) is 1.875". To verify if your existing axle will work, add the width of the axle carrier tube on the wheelchair plus any spacers that are being used to this hub (1.875") and compare the length to your existing axle. If you are using a quick release axle, the length is measured from the underside of the adjustment nut to the start of the retractable ball on the other end (most quick release axles are adjustable in length by up to a 1/4"). If your are using a conventional hex head axle, the measurement is from underside of the head to the end (remember you need additional length to accommodate the thickness of the nut).

    24 in. (540) Swan® 16 Spoke Aluminum Wheelchair Wheel Specifications
    Double wall rim made from high strength lightweight aluminum
    Inner width of rim is 18 mm
    8 12 gauge straight pull spokes on the inside of the hub
    8 12 gauge cross laced spokes on the outside of the hub
    High strength aluminum hub
    1/2" inner diameter sealed precision bearings
    Standard 6 tab push rim with two hole adjustment made from black anodized aluminum
    Product weight (with handrim attached and no tire) is
    Weight capacity is 250 lbs
