  • Jazz (by Omobic) Adjustable Suspension Caster Fork | Set of 2
  • Jazz (by Omobic) Adjustable Suspension Caster Fork | Set of 2
  • Jazz (by Omobic) Adjustable Suspension Caster Fork | Set of 2
  • Jazz (by Omobic) Adjustable Suspension Caster Fork | Set of 2

    • Jazz (by Omobic) Adjustable Suspension Caster Fork | Set of 2

    MBL-Omobic

    $225.00
    SKU:
    CF065
    Condition:
    New
    Availability:
    Usually ships in 24-48 hrs
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

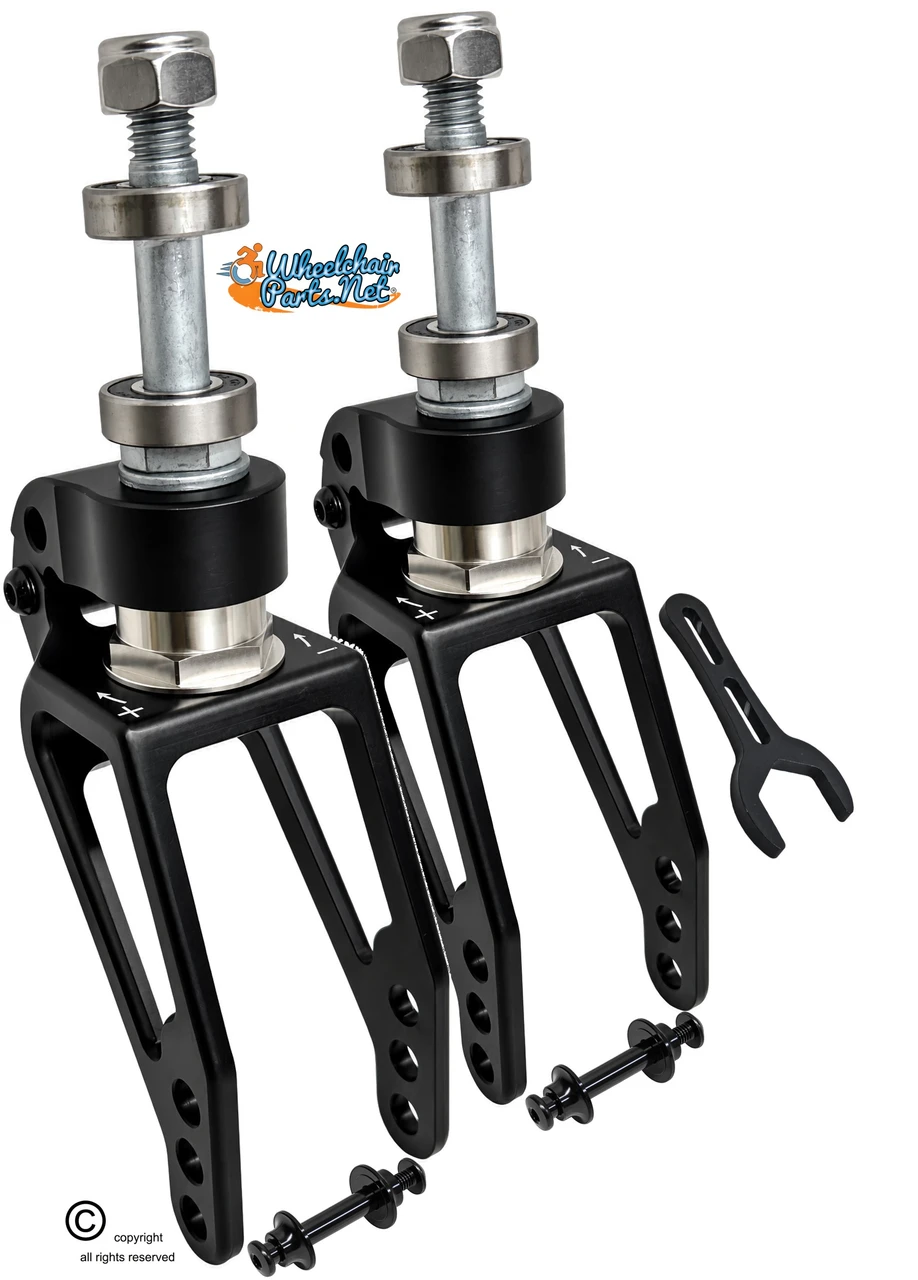

    Upgrade your wheelchair's front caster suspension with the JAZZ Adjustable Suspension Caster Fork by Omobic. Designed to absorb bumps and reduce vibrations, this lightweight aluminum fork provides a smoother, more comfortable ride across different surfaces.

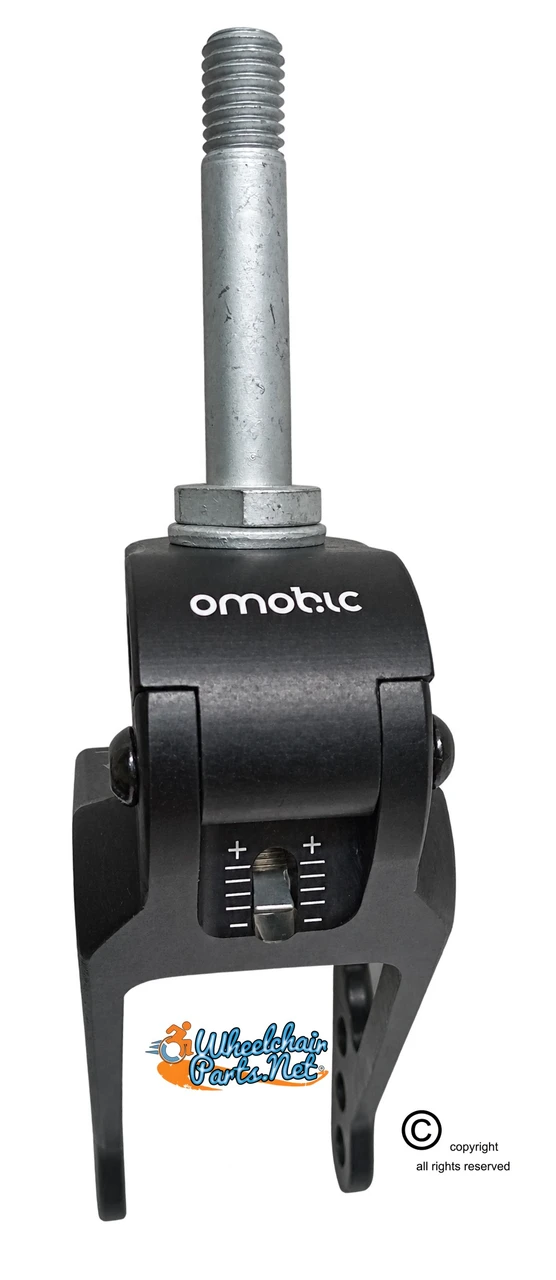

    The adjustable suspension system allows users to fine-tune shock absorption based on rider weight and terrain conditions. An included adjustment wrench makes it easy to adjust the suspension, while the rear-mounted indicator displays the current suspension setting.

    Constructed from durable black anodized aluminum, these forks accommodate compatible 3" to 6" caster wheels and feature three 8 mm axle mounting holes for wheel positioning. Sold as a set of two, complete with wheel axles, spacers, bearings, mounting nuts, and an adjustment wrench.

    ✅ Compatibility

    • Designed to fit on many manual wheelchairs equipped with standard caster forks

    • Accommodates 3" to 6" caster wheels

    • Compatible with select Quickie, TiLite, and Ki Mobility wheelchairs. Installation requires replacing the existing caster fork bearings with the bearings included in this set.

    • Verify stem dimensions and mounting compatibility before ordering and installation.

    • Stem Thread: M12 x 1.75

    • Stem Diameter: 12 mm

    • Stem Length: 2.40"

    • Inside Fork Width: 1.78"

    • Wheel Axle Hole Diameter: 8 mm (5/16" nominal)

    • Three axle mounting positions per fork

    Features

    • Adjustable shock-absorbing suspension for a smoother, more comfortable ride

    • Helps reduce bumps and vibrations during wheelchair operation

    • Suspension adjustment to accommodate different rider weights and terrain conditions

    • Includes adjustment wrench for easy suspension tuning

    • Rear suspension setting indicator displays the current adjustment level

    • Three axle mounting holes for different caster wheel positions

    • Lightweight and durable aluminum construction

    • Corrosion-resistant black anodized finish

    • Compatible with 3" to 6" caster wheels

    • Complete set of two forks with mounting hardware and accessories

    Specifications

    • Brand: Omobic

    • Model: JAZZ Adjustable Suspension Caster Fork

    • SKU: CF065

    • Fork weight: 15oz with 2 bearings, nut and axles/spacers.

    • Fork Type: Adjustable Suspension

    • Material: Aluminum

    • Finish: Black Anodized

    • Stem Thread: M12 x 1.75

    • Stem Diameter: 12 mm

    • Stem Length: 2.40"

    • Fork Height (Excluding Stem): 5.65"

    • Inside Fork Width: 1.78"

    • Wheel Axle Hole Diameter: 8 mm

    • Axle Mounting Holes: 3 per fork

    • Bearing Inside Diameter (ID): 12 mm

    • Bearing Outside Diameter (OD): 1-1/8"

    • Compatible Caster Wheel Sizes: 3"–6"

    • Quantity: Set of 2

    • Included Components: 2 suspension caster forks, 2 wheel axles with spacers, 4 bearings (2 per fork), 2 mounting nuts, and 1 suspension adjustment wrench

    California Proposition 65 Warning

    ⚠️ WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
